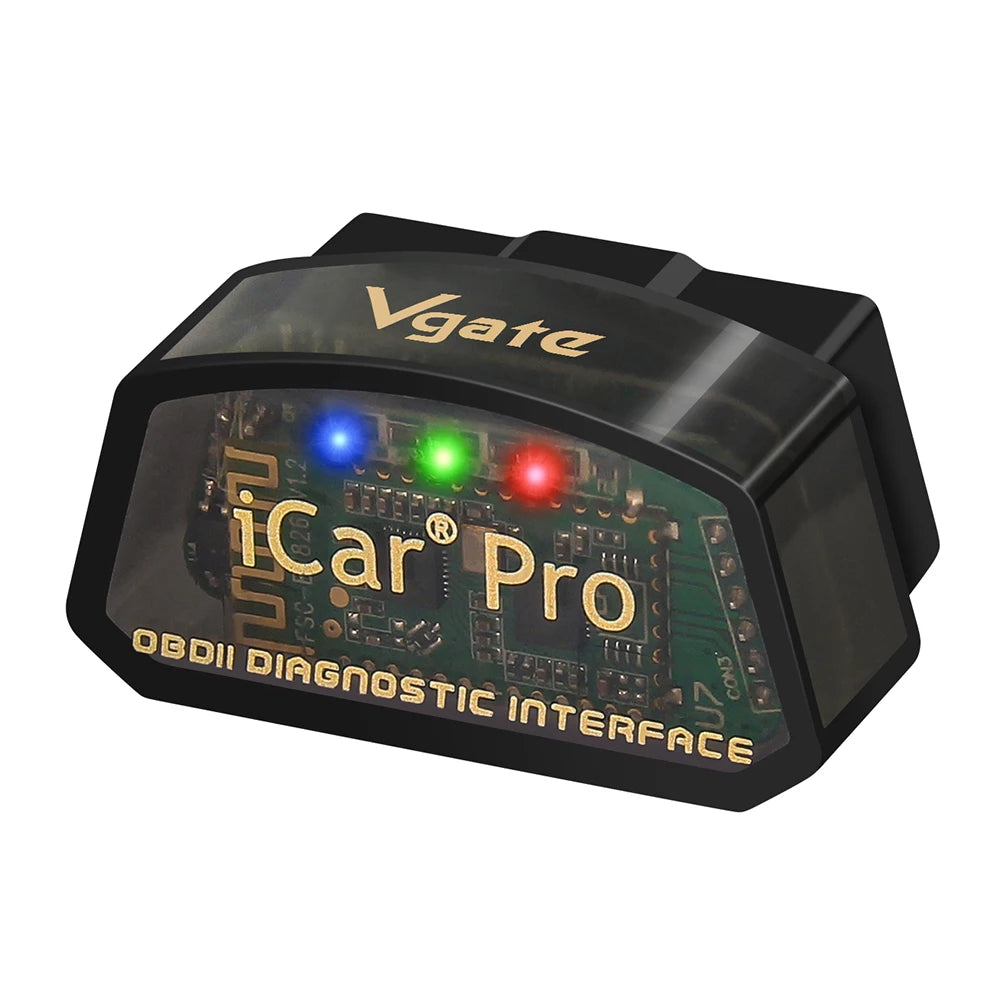

Vgate iCar Pro ELM327 V2.3 Bluetooth 4.0 WIFI For IOS/Android OBD Auto Scanner Code Reader OBD2 Car Diagnostic Tool ELM 327 V1 5
Vgate iCar Pro ELM327 V2.3 Bluetooth 4.0 WIFI For IOS/Android OBD Auto Scanner Code Reader OBD2 Car Diagnostic Tool ELM 327 V1 5
SPECIFICATIONS
Brand Name: Vgate
Car Maker: For BMW/BENZ/VW/OPEL/AUDI/Toyota etc.
Certification: CE
Choice: yes
Function: More Powerful Than ELM327 V1.5
Hardware Version: Original Vgate iCar Pro V2.3
High-concerned chemical: None
Item Name: 100% Original Vgate iCar Pro BT3.0/4.0/WIFI
Item Type: Code Readers & Scan Tools,Vgate iCar Pro with BT4.0/3.0 WIFI Wireless Scanner
Language: English
Operating system For BT3.0: For Android
Operating system For BT4.0/WIFI: For Android/IOS
Origin: Mainland China
Product Name: 100% Original Vgate iCar Pro ELM 327 V2.3 Code Reader
Software Update: No
Software Version: Original Vgate iCar Pro ELM327 V2.1
Special Features: Other,Adapter Auto Sleep
Warranty: 1 Year
semi_Choice: yes
Vgate iCar Pro ELM327 V2.3 Bluetooth 4.0 WIFI For IOS/Android ELM 327 OBD 2 Auto Scanner Code Reader OBD2 Car Diagnostic Tools
Purchase Notes：

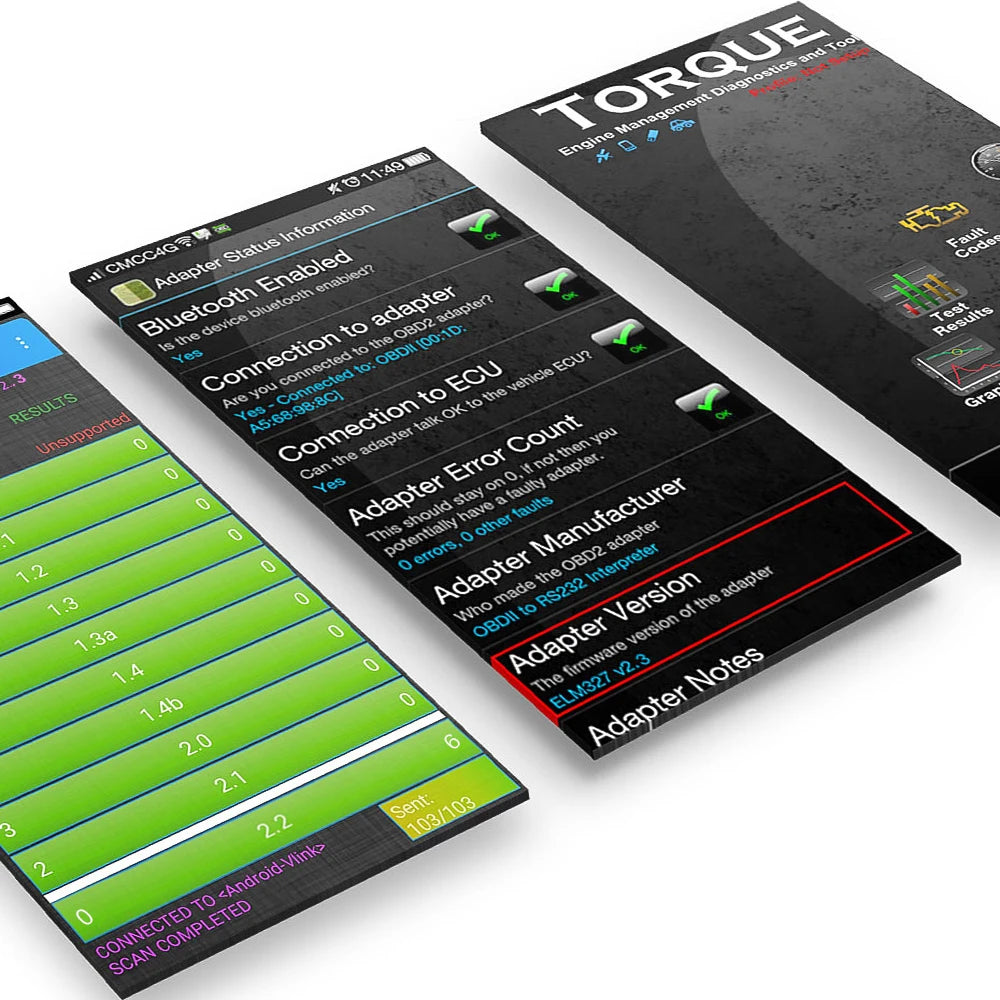

1.iCar Pro's firmware version has been updated to ELM327 V2.3 for all market in the world,V2.3 adds more instructions to read more data and vehicles.and V2.2 and V2.3 are shipped randomly,If you received the V2.2 version, please download the upgrade package on the official website to upgrade by yourself, it will not affect the use of the product.
http://www.vgatemall.com/downloadcenter
2.Our store sells the original iCar pro,We have Anti-piracy Software to test if is original,Please contact us to get the Anti-piracy Software,Avoid getting fake iCar pro from other stores
3.If your mobile phone is IOS, when you use BT4.0 Ver., please connect to BT directly in the software,Don't connect to BT in phone settings
If you use BT 4.0 to Connected, please connect it directly in the diagnostic APP

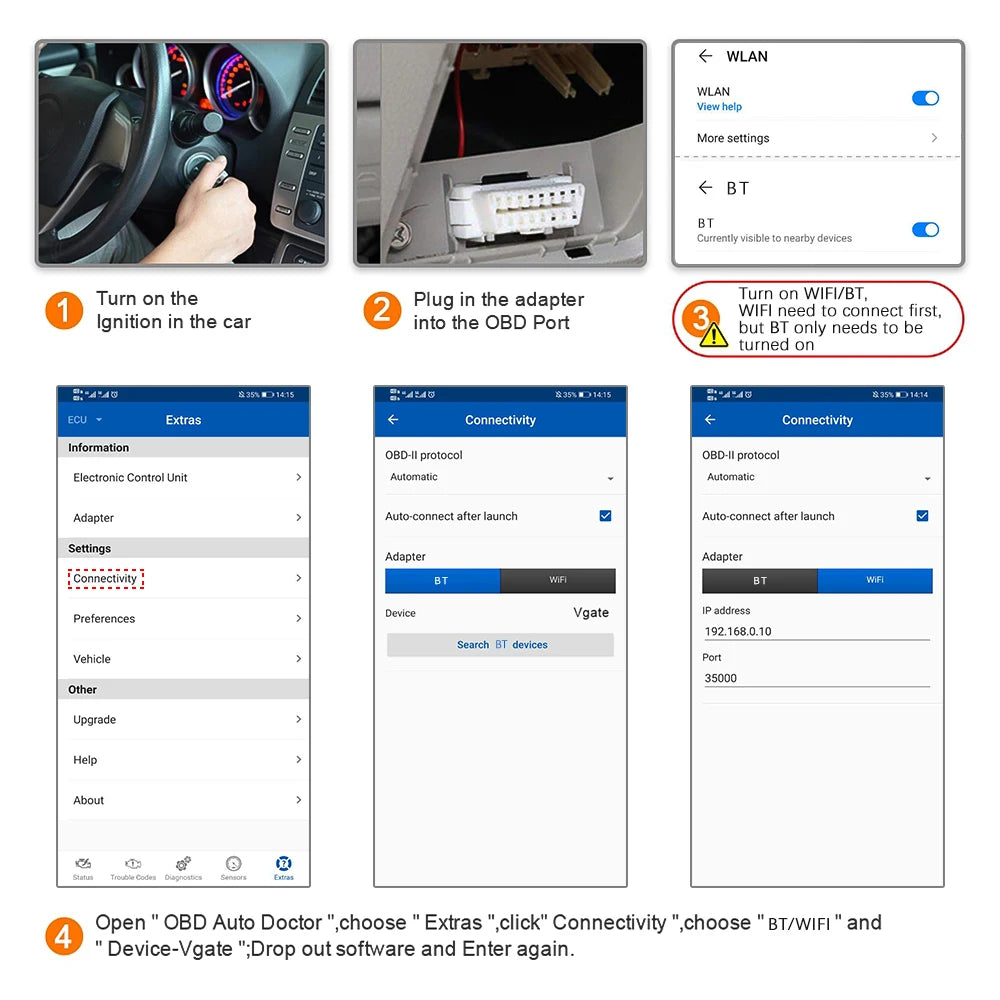

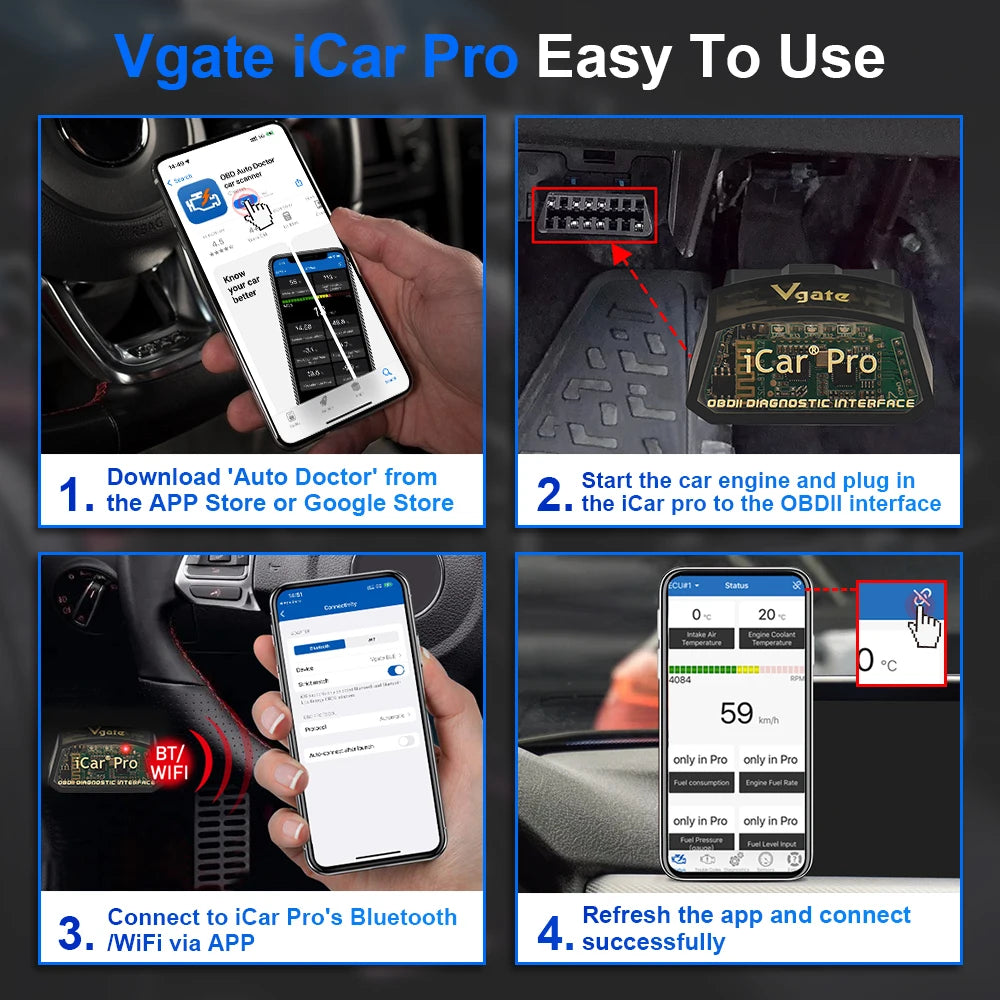

How to connect Vgate iCar Pro:

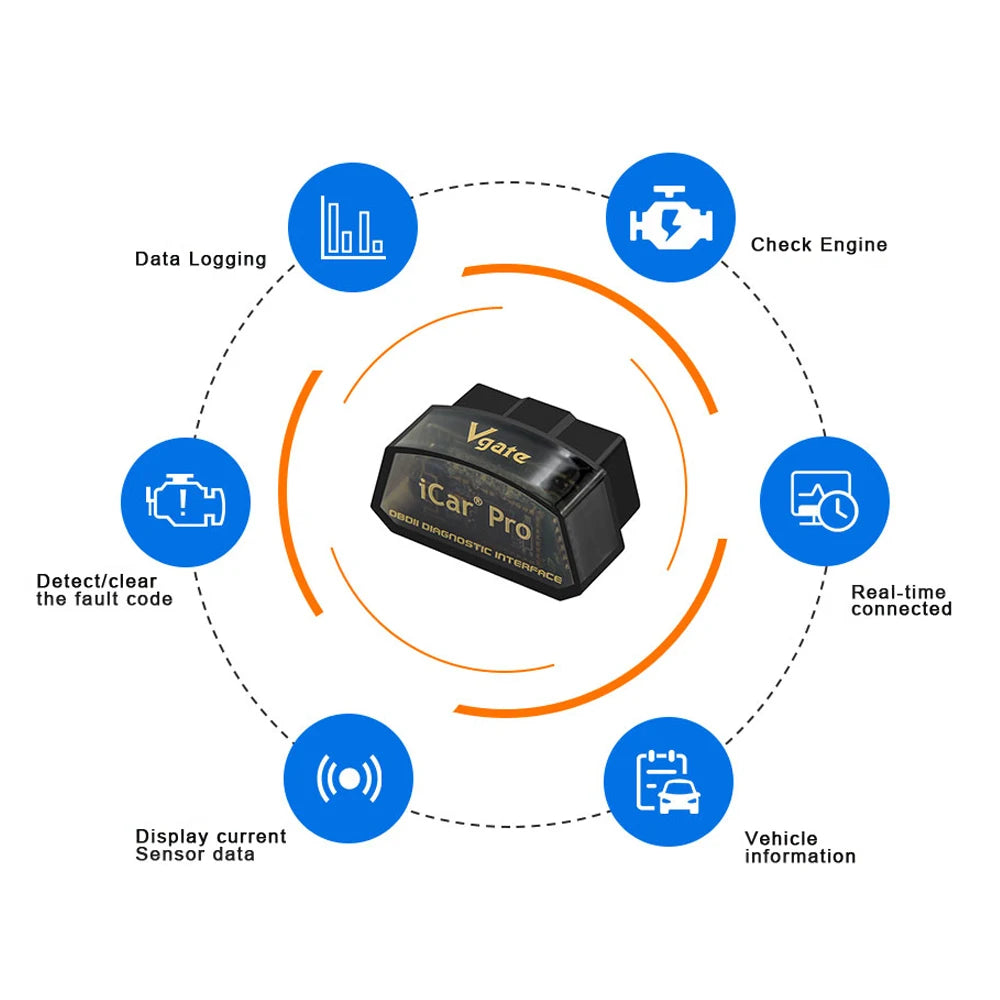

Vgate iCar Pro Features:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many othershellip
Vgate iCar Pro Specification:
Supply Voltage: 11.5V-15V
Supply Current: <200Ma
Standby Current: <30Ma (TONWON Pro = <3Ma)
Operating temperature: -40 ℃ - 85 ℃
Operating Humidity: 5% - 95% RH Non-Dewfall
Hardware version：V2.2
Supported systems：Android/IOS
Connection method：BT 3.0/4.0/WIFI

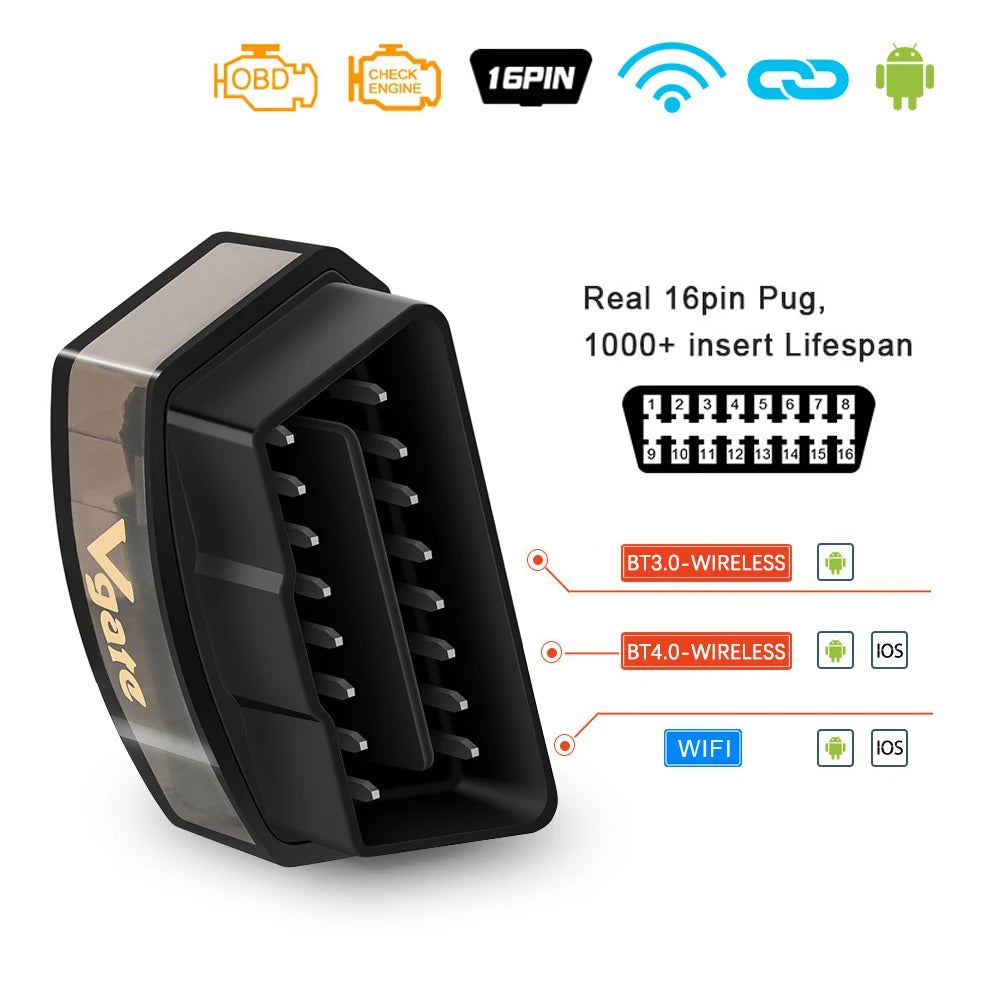

100% Original iCar Pro Connection Method：
1.BT3.0-Wireless for Android

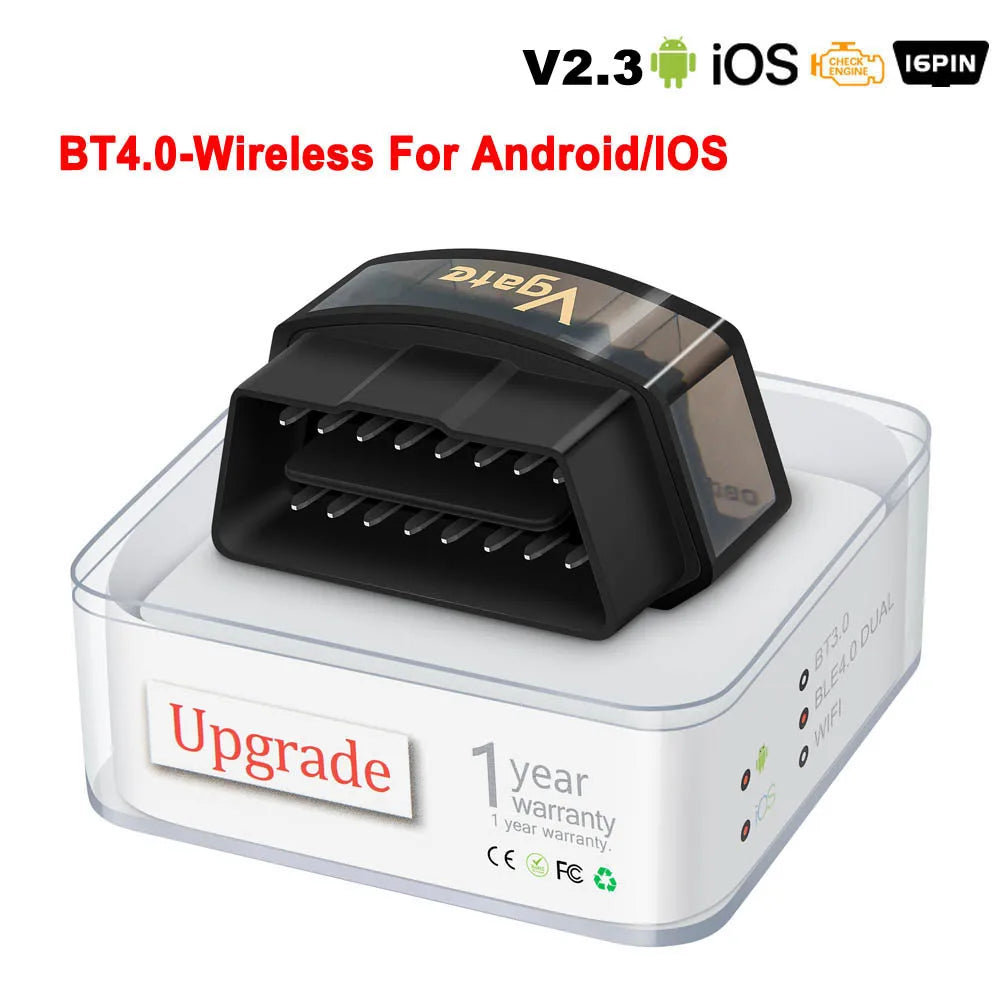

2.BT4.0-Wireless for Android/IOS
3.WIFI for Android/IOS
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1939 CAN (29bit ID, 250 * Kbaud)
USER1 CAN (11 * bit ID, 125 * Kbaud)
USER2 CAN (11 * bit ID, 50 * kbaud)
* Default Settings (User Adjustable)

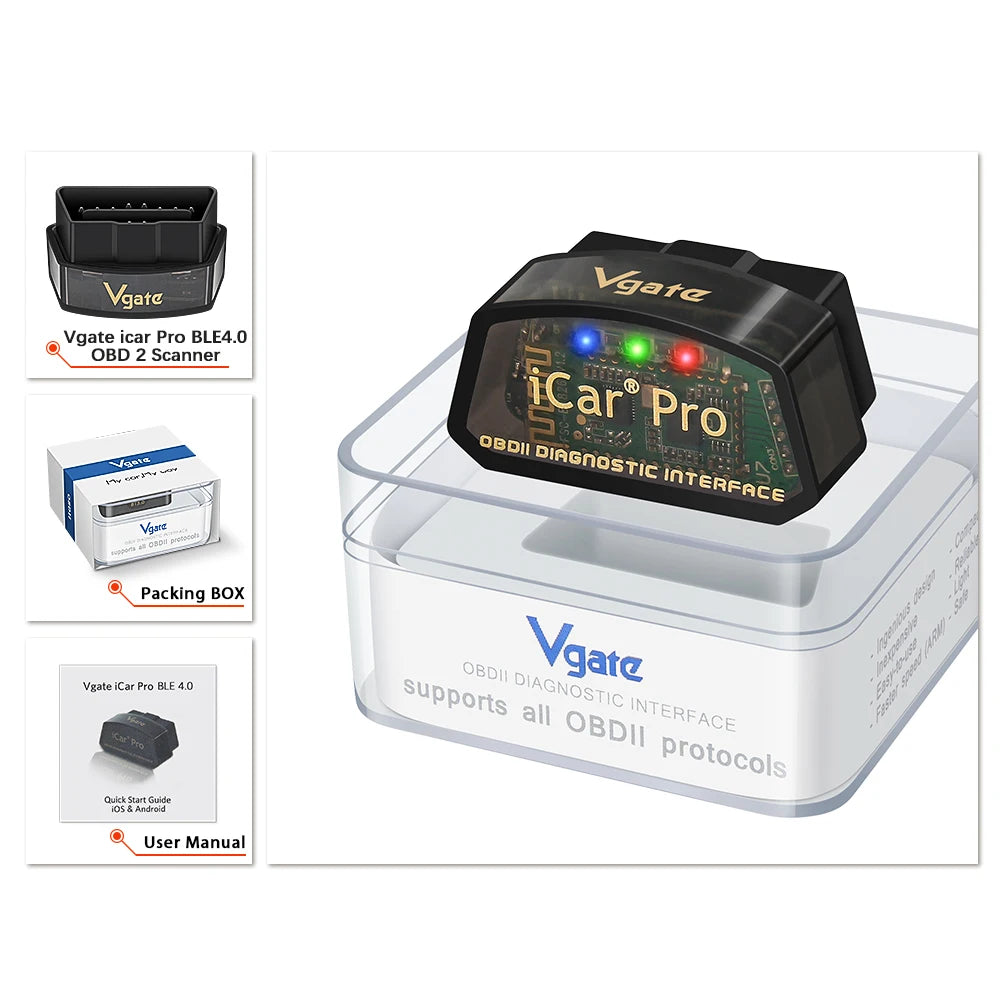

1 x Vgate iCar Pro OBDII
1 x User manual
